Today let’s reinforce some QV data model principles for us old timers and introduce a few tricks for newbies to Qlikview.

#1. Keys are not data. Key Fields in a Qlikview model should serve the data modeler, and not be used by chart Designers as data.

Consider two tables, OrderHeader (one row for each Order) and OrderDetails (one row for each Order Line). linked together by Field OrderID.

OrderID may be a value that you need to display in your charts. However, problems arise when you try to do things like count(OrderID). Which end of the connection should the expression count? It’s unreliable as discussed in detail here:
http://qlikviewnotes.blogspot.com/2010/01/best-way-to-count-keys-dont.html

The solution is to create a counter field on the table that represents the correct cardinality for the counter. If we are counting Orders, that would be the OrderHeader table.

In the LOAD of the OrderHeader table:

1 as OrderCounter

Part two of of the recommendation is to isolate the key field so it is not mistakenly used as a data field. We do this by prefixing the key field name with a special character and SETing the QV system variable “HidePrefix” to that character.

SET HidePrefix=’%’;

In the LOAD of both OrderHeader and OrderDetails:
OrderID as %OrderID

Fields that begin with the HidePrefix value will not show up in:
–  Current Selections.
– Dimension or Expression property dialog (unless “Show System Fields” is checked).

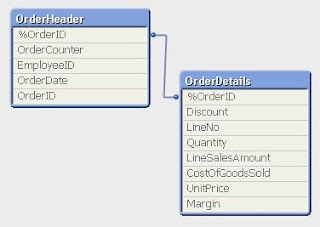

Of course, the specific values of OrderID may be useful to display in UI charts. In that case we must preserve it as a data item in one and only one table. We will include it in the LOAD of the OrderHeader table. Our data model now looks like this:

OrderID is available as a data field, but appropriately only from the OrderHeader table.

OrderCounter is now available as a field such that
=sum(OrderCounter)
will yield the correct Order count.

Now we (the Data Modelers!) own those “%” key fields! They are ours, we told the UI designers explicitly that “it is not data” .

Part three, and a very important part indeed, is to autonumber() the key fields. Autonumber() is a Qlikview lookup function that translates parameter values into integers. The sequential integers returned by autonumber() will reduce the RAM requirements and increase the linkage efficiency as detailed here
http://qlikviewnotes.blogspot.com/2008/05/memory-sizes-for-data-types.html
and
http://community.qlikview.com/blogs/qlikviewdesignblog/2012/11/20/symbol-tables-and-bit-stuffed-pointers

Admittedly, it gets a bit geeky. Bottom line, here is what you want to do for your keys:
autonumber(OrderID, ‘%OrderID’) as %OrderID

The autonumber() function converts values to sequential integers. The second parameter,  ‘%OrderID’, is important if you have multiple keys being autonumber() in your script.

To summarize:
#1. Keys are not data.
#2, Isolate keys using the “SET HidePrefix=x;” variable. Establish counter fields on the appropriate table.
#3. Use the Autonumber() function to convert key field values to sequential integers. This will minimize the memory footprint of the application and improve the efficiency of cross table look-ups.

My friend and colleague Barry Harmsen, author of QlikView 11 for Developers, who is a much wiser data modeler than I, will be discussing QV data modeling in depth with me at the Masters Summit for Qlikview in Europe this October. I hope you can join us!

Delta Load, sometimes called Incremental Load, is the technique of pulling only changed or new rows from a database and then merging those rows with a master QVD. The Delta Load pattern follows these general steps:

1. Determine high water mark (“last reload”)
2. Build WHERE predicate in syntax of target DB.
3. SQL SELECT delta rows.
4. Merge delta rows with QVD.
5. If Deletes, INNER JOIN entire set of Keys from DB with QVD

The first step is to determine what cutoff value — delta point — do we want to pass in the SQL SELECT WHERE clause to identify new rows. This value is usually the highest value in the existing QVD.

The most robust and reliable method for step one is loading with max() from the existing QVD. For example:
LOADmax(LastModified) asMaxModifiedFROMmyqvd.qvd (qvd);

This works well, but reading the entire QVD can take a very looooong time for a large QVD.

A much faster method is to aggregate the max value for the Delta rows only and then save that value on the first row of the QVD. In subsequent delta loads, only the first row of the QVD is read to get the value. This is extremely fast and is not effected by QVD size. For example:

Facts:
SQLSELECT *
FROMmytableWHERELastModified>= ‘$(vMaxModified)’;

The “HighWaterValue” field will contain a relatively small number of values and will therefore have a negligible impact on the size of the QVD. You will of course have to create the field the first time before trying to load it with the “FIRST 1…”.

If you are using Qlikview Components (QVC) V8+ for delta loading, you can enable this high performance strategy by setting the variable:

QVC will automatically create a high water field named Qvc.MaxModFieldValue
and detect the availability of the field on subsequent loads. There is no need to pre-create the field before turning on this feature.

The technique is part of the Advanced Scripting material I’ll be presenting at the upcoming Masters Summit for Qlikview in Europe this October. I’ll be discussing more about Delta Loads, including strategies for merging large QVDs and tables with non-unique keys. Review the full agenda here and decide if the Masters Summit might help take your Qlikview skills to the next level.
